8.09.2015

Small Thrusters v2.0 – Building

Before reading this you should get acquainted with our design by reading about the CAD models for the small thrusters. As a brief intro, the small thruster is made up of four different parts: the grills, motor mount, thruster curtain, and curtain mount.

Grills

The grills are designed to keep large debris out of the small thrusters. Each thruster has two grills, one on each side of the thruster (to block both ends). We printed all of our grills on a MakerBot Replicator with PLA. The grill sits flat with the exterior of the sub and has 6x.125" spokes to stop material from getting caught in the 2" thruster.

Printed Grill


Motor Mount

The motor mount was cut out of .25" Delrin. Delrin's material properties allow it to be both strong, easy to machine, and, therefore, also nice to tap. Although it is a close cousin on acrylic, is does not shatter or crack as easily.

We went through two different iterations of cuts before we perfected our motor mount. Similar to the grill the motor mount has 6x.125" spokes so they line up with each other.


Motor Mount on CNC
Motor Mount



Thruster Curtain

Version 1

The first version of this years Thruster Curtain was very similar to last years. We cut out 2" PVC pipe and used the lathe function of a Stinger CAMaster CNC router to cut slots in it. These pieces cut out very quickly, but were slightly off due to the imperfections from the lathe.

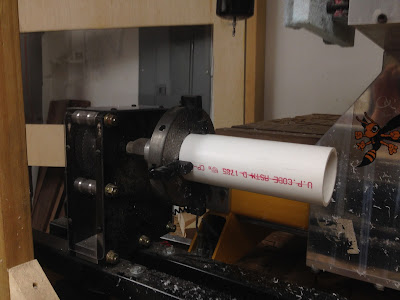

Lathe attachment on CNC router

Finished PVC Thruster Curtain


Along with the first version of the Thruster Curtain we made a curtain mount. This mount is used to permanently mount one end of the PVC to the aluminum body.This piece was also cut out of Delrin (like the motor mount).

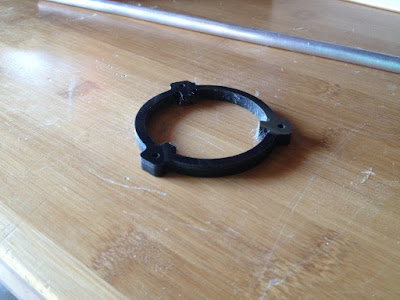

Thruster Curtain Mount (PVC flavor)

Version 2

While the first version of the thruster mount worked well, it was relatively hard to make and imprecise (all due to the lathe function on the CNC router). In Version 2 we decided to 3D print our Thruster Curtains using PLA plastic and a MakerBot Replicator. This was much more precise giving us a better result with less effort!

Printed Thruster Curtain

Assembly

Version 1:

First we used epoxy to glue the Delrin thruster curtain mount to the PVC pipe (thruster curtain). This is a permeant attachment and holes the curtain in place while the sub is running.

Epoxying
Epoxy drying

Although epoxying the curtains together worked well, we decided to use the printed curtains instead.


Version 2:

Assembling the printed curtains for the through hole thruster was easy. We just needed to add M4 threaded inserts to the printed plastic to allow us to mount the curtain using bolts. To do this, we heated them up with a heat gun, pressed them into the plastic, and then mounted them in place. This allowed them to cool and set in the correct orientation.

Threaded Insert


We then mounted our finished motors to the Delrin motor mounts.


Motor in Mount

One Mounted Motor

Five Mounted Motors



Note:
While it is hard to see in these pictures we wanted to make sure that the bolts didn't protrude from the mounts, so we got M3 bolts that have beveled heads, allowing us to sink them into the delrin mounts.

And here the mounted motor is fit inside of the thruster curtain:


Motor in Curtain

Motor in Curtain Size Reference



To finished mounting the thruster we pressed the grills into the holes in our aluminum body and slid the thruster curtain/mounted motor combination into place. We then used six M4 bolts (three on each side) to mount the thruster in place.

Two Mounted Thrusters
